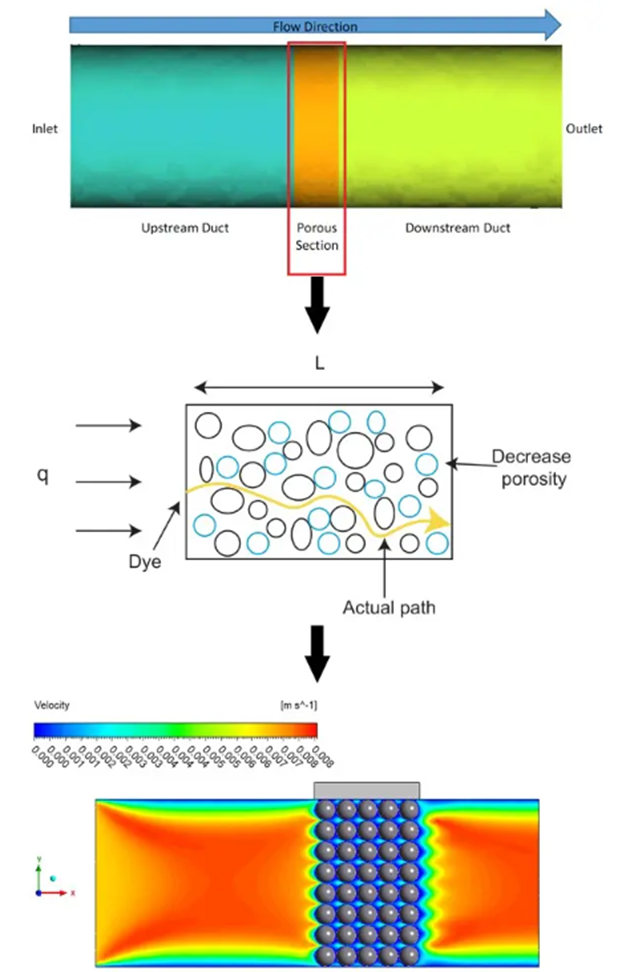

Porous media CFD simulation is a way to see how fluids like air and water move through materials that have tiny holes or gaps. These materials are called porous materials. Things like air filters, soil, and foam are all examples. Using CFD modeling, we can understand how fluids move inside them.
This kind of simulation is done using a computer tool like ANSYS Fluent. Engineers use it to test their ideas without building real models again and again. It helps save time, money, and effort. This method is also very useful in building safer and better products.
Why Is It Important?
Porous flow analysis is very helpful in many areas of engineering. For example, in cars, the exhaust system uses filters to clean gases. With fluid simulation, engineers can check how gas flows through those filters. They can then improve the design for better performance and lower cost.
In factories, large filters are used to keep machines clean. Using engineering simulation tools, designers can find out how long a filter will work and when it needs to be changed. This helps companies avoid sudden machine failures and saves money in the long run.
Basic Properties of Porous Materials

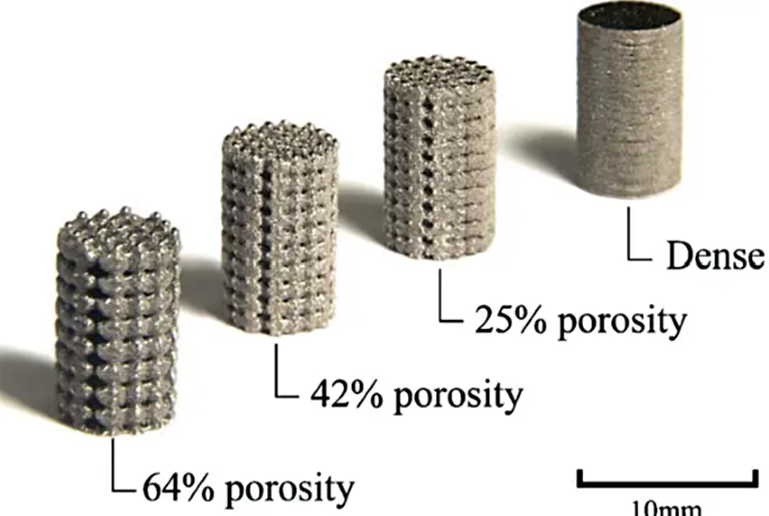

Porous materials have small holes inside them that allow fluids to pass. One important property is porosity, which shows how much space is empty. If a material has 40% porosity, it means 40% of it is just space for air or water to move through.

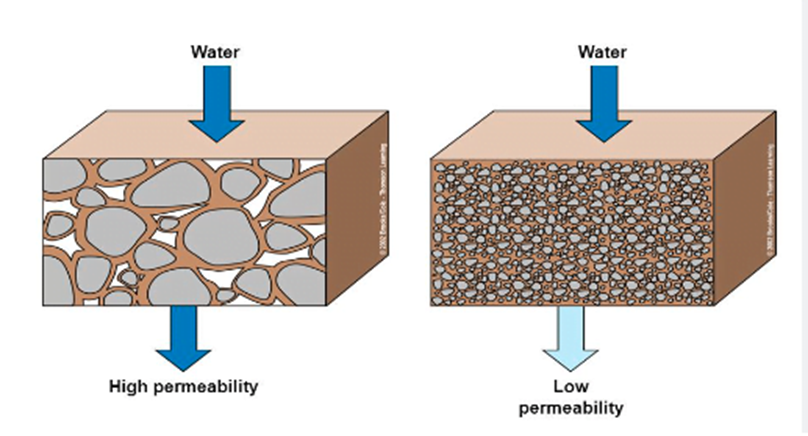

Another property is permeability. This tells how easily the fluid can flow through the material. If the pores are big, the permeability is high, and the fluid can move easily. But if the pores are small, the flow will be slow and blocked more.
Flow Paths and Fluid Behavior

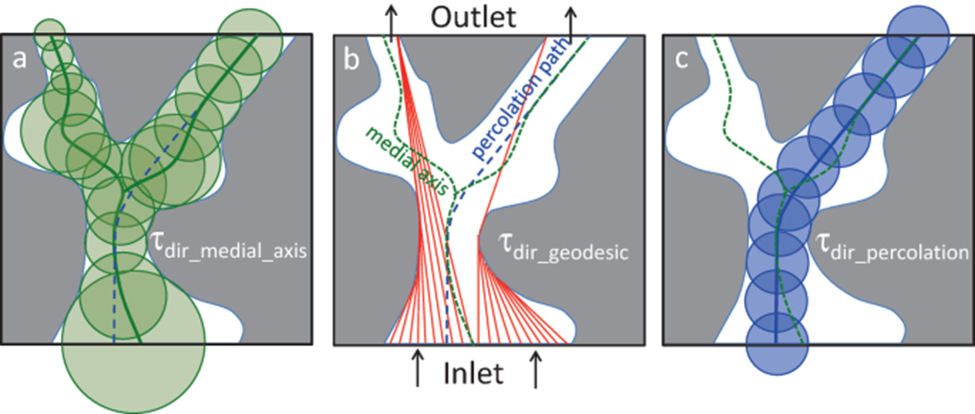

The way fluids move inside porous materials is not always straight. Sometimes the paths twist and turn. This is called tortuosity. When the flow is more twisted, it becomes harder for the fluid to pass. Engineers study this to understand how the material will behave in real life.
Another thing to consider is capillary action. In tiny pores, the fluid can stick to the walls and move differently. This happens a lot in soil or filters where water and air are both present. Studying this helps engineers design better water systems and filter designs.
How Equations Help in Simulation?
In CFD simulations, we use simple mathematical laws to understand the fluid flow. One main equation is Darcy’s Law. It helps when the fluid moves slowly. It shows that pressure drops steadily as fluid moves through the material.
When the fluid moves fast, we also use Forchheimer’s Law. This adds a part that shows extra resistance due to speed. These equations help engineers predict pressure drop, which is how much pressure is lost when fluid flows through something.

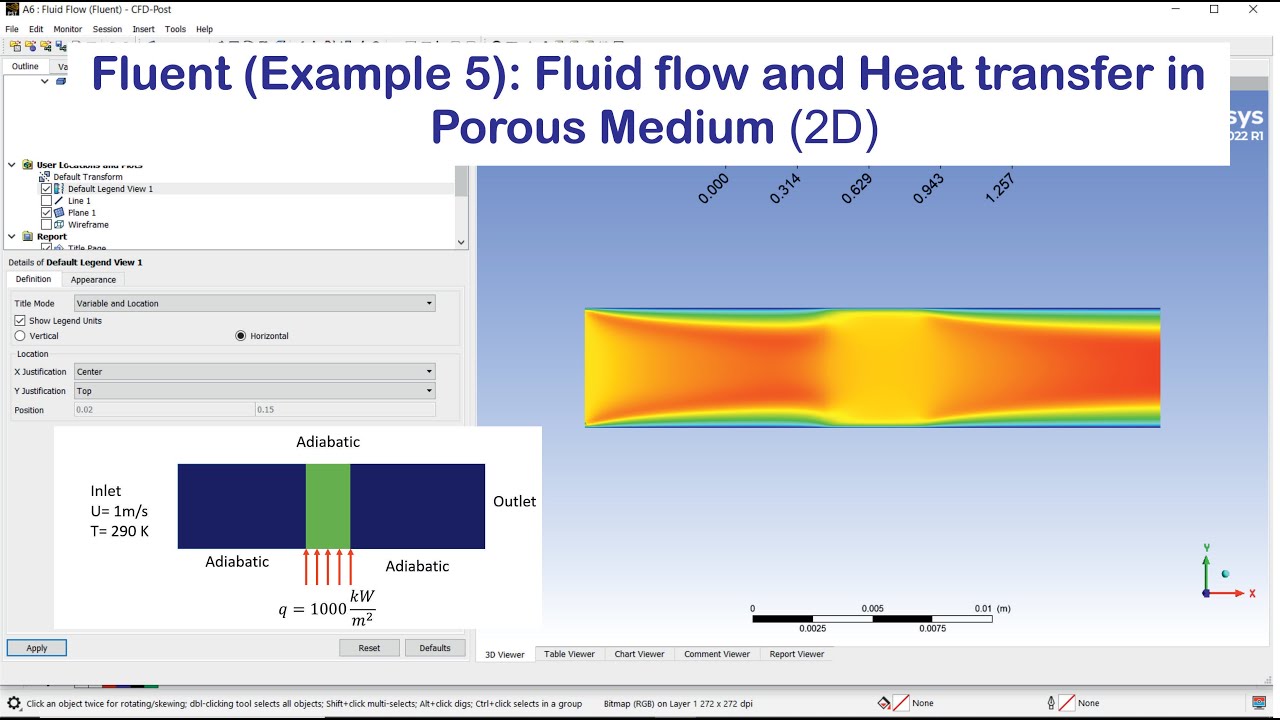

Heat and Mass Flow Inside Porous Materials
Fluids not only move — they also carry heat and other elements. In porous materials, thermal flow is important. Heat moves through both the fluid and the solid parts. Most of the time, we assume both parts have the same temperature.
In special cases, like in chemical factories, the fluid and solid may have different temperatures. Then, we need more detailed models. These are used when heating or cooling happens quickly, and normal methods don’t give correct results.

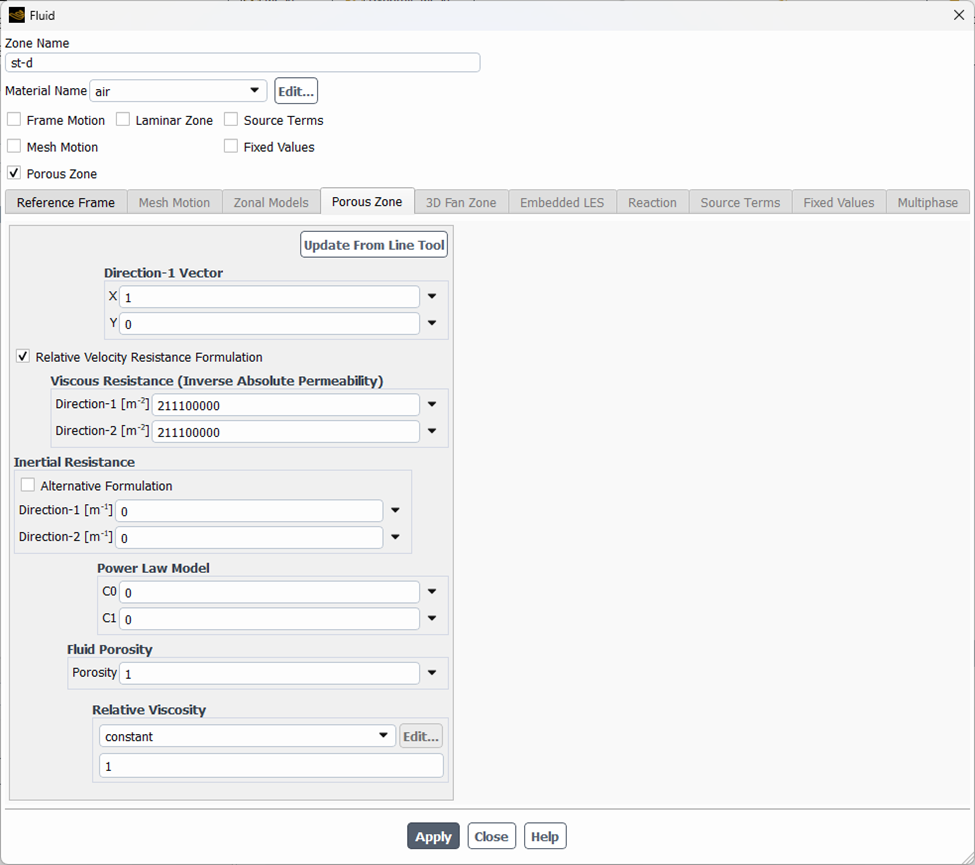

How to Set Up Porous Zones in ANSYS Fluent?
When using ANSYS Fluent setup for porous media, you must enter the right values. For example, permeability must be in the correct units. Many engineers make the mistake of using the wrong units, which gives bad results.
You also need to set resistance values for flow. These are based on how rough or twisted the material is. If the flow is different in different directions, you can set that too. ANSYS Fluent gives options for advanced setups, making the simulation more realistic.
How to Model Porous Media in ANSYS Fluent
Modeling porous media in ANSYS Fluent is simple if you follow the correct steps. First, you need to define a zone in your geometry where the fluid flows through a porous material. This is often done by selecting the “porous zone” during the mesh setup. Once selected, you can enter values for permeability and resistance to control how easily fluid passes through that section.
After defining the zone, apply appropriate boundary conditions, such as velocity or pressure inlet. Then, activate porous media options in the materials panel. This lets Fluent simulate how the fluid slows down inside the porous part. This method is useful for engineers working on filters, insulation, or flow in packed beds. It’s an important part of any CFD porous zone study.
Step-by-Step Guide for Porous Media CFD Simulation
To start your porous media CFD simulation, first create a geometry in your CAD software or ANSYS DesignModeler. Then mesh the model carefully, especially the areas where the porous media will be applied. In Fluent, set the zone type to “porous,” then define its viscous and inertial resistance using values from experiments or literature.
After setup, run a few trial simulations to make sure the flow modeling in Fluent is behaving as expected. Keep an eye on the velocity and pressure drops inside the porous zone. You can compare your results with experimental data to confirm accuracy. This step-by-step method is perfect for those new to ANSYS Fluent tutorials and ensures good CFD simulation quality.
What is Porous Media in Computational Fluid Dynamics?
In CFD, porous media refers to regions where fluid moves through a material that has small holes or gaps, like foam, filters, or rocks. These materials resist fluid flow, so the fluid slows down and changes direction. This effect is modeled in a simulation using equations that represent flow resistance and pressure drop.
Engineers use porous media models to design products like air filters, heat exchangers, or soil flow systems. With CFD for engineers, this allows testing different designs without building them physically. It’s a cost-effective and fast way to improve performance in industries like automotive, HVAC, and civil engineering.
Best Practices for Porous Media Flow Simulation in Fluent
Always begin with accurate data for your porous material. This includes permeability and porosity values that match real-world conditions. Use literature, lab tests, or manufacturer data to fill these values in Fluent. Without correct input, your porous resistance simulation may show false results.
Also, refine the mesh near porous boundaries and check the convergence criteria in Fluent. Ensure the solver reaches a steady solution and results are stable over time. These best practices are key to reliable results in any ANSYS porous simulation, especially when you’re simulating complex designs with flow through porous structures.
Porous Zone vs Fluid Zone in ANSYS: What’s the Difference?
A fluid zone in ANSYS Fluent is where fluid flows freely, like air in a pipe or water in a tank. There is no resistance unless added manually. In contrast, a porous zone adds internal resistance, which simulates a material the fluid has to pass through slowly, like a sponge or gravel layer. Choosing between them depends on your simulation goal. Use a fluid zone when modeling open flow and a porous zone for restricted or filtered flow. Understanding this difference helps you apply the right simulation of porous layer technique and get accurate CFD results, especially in environmental and mechanical projects.
Porosity and Heat Transfer Settings
In simulation, porosity affects not just the flow but also how heat is shared. Always try to use real, tested values instead of guessing. This makes the simulation more accurate and helps in good product design.
If the material behaves specially — not like the regular Darcy or Forchheimer laws — Fluent has a Power Law option. This is used in special cases, like foams or woven filters, where normal laws do not apply.
What CFDLAND Offers?
CFDLAND is a team that helps engineers with porous media CFD simulation. They work on different projects like air filters, water systems, and chemical reactors. They use smart tools and tested methods to solve flow problems.
The team starts by understanding the problem fully. Then, they run the best possible simulations and provide results in a clear report. These reports help engineers make better decisions and design products that work well.
Conclusion
Porous media CFD simulation is a simple but powerful tool. It helps engineers test how air or water moves through materials like filters, soil, or foam. By using tools like ANSYS Fluent and equations like Darcy’s and Forchheimer’s, we can get answers without building real models every time.
With this method, products become better, safer, and cheaper to make. If you want expert help or want to learn this step-by-step, visit CFDLAND. Their team can guide you to use these simulations and solve real-world engineering problems with ease.
FAQs
What is porous media in ANSYS Fluent?
Porous media in ANSYS Fluent is a special zone where fluid flows through small holes or pores, like water passing through a sponge. It helps engineers study how fluid moves inside filters, foams, or packed beds.
This method is useful in industries like oil & gas, HVAC, and chemical processing where flow resistance is important.
How do you simulate porous flow in CFD?
To simulate porous flow in CFD, you define a porous zone inside the model and give values like resistance and porosity. These tell the software how hard it is for fluid to pass through.
ANSYS Fluent uses Darcy’s Law and other equations to calculate pressure drop and flow behavior inside the porous area.
What parameters are required for porous media modeling?
You need to provide values like permeability, porosity, viscous resistance, and inertial resistance. These control how easily fluid flows.
For example, higher resistance values mean slower fluid flow. These settings are usually based on real material data or experiments.
What is the difference between the porous zone and the fluid zone in Fluent?
A fluid zone lets fluid move freely without any blockages. A porous zone slows the flow down using resistance values.
Porous zones are used when you want to simulate filters, foams, or any material where flow faces difficulty.
How do I set up a porous jump boundary condition in Fluent?
In Fluent, a porous jump is a thin surface that causes sudden pressure loss. It’s used when the thickness of the porous material is very small.
To set it up, you just select the surface, assign it as a porous jump, and add resistance values. Fluent will handle the pressure drop for you.
